HTC Vive Focus Vision
VIVE Focus Vision is HTC's standalone mixed reality headset with built-in eye tracking, stereo color passthrough, and DisplayPort mode for PC VR. HTC launched it on September 18, 2024 for enterprises and high-end gaming.
Specifications
| Display | Two LCD panels, 2448 x 2448 pixels per eye |
|---|---|
| Refresh rate | 90 Hz. 120 Hz in DisplayPort mode (beta) |
| Field of view | Up to 120 degrees |
| Processor | Qualcomm Snapdragon XR2 |
| Memory and storage | 12 GB RAM, 128 GB storage, microSD up to 2 TB (card not included) |
| Tracking | Inside-out with four tracking cameras, no base stations. Play area up to 10 x 10 m |
| Hand tracking | 26 point hand tracking with an infrared floodlight |
| Eye tracking | Built in. 120 Hz gaze output, automatic IPD 57 to 72 mm, foveated rendering (content dependent) |
| Passthrough | Two full-color cameras and a depth sensor |
| Audio | Dual microphones with noise and echo cancellation, directional speakers, 3.5 mm jack |
| Connectivity | Two USB 3.2 Gen 1 Type-C ports (one with DisplayPort support), Bluetooth 5.2, Wi-Fi 6 and 6E (6E country dependent) |
| PC VR | VIVE Business Streaming by cable or Wi-Fi 6E. DisplayPort mode needs the VIVE Wired Streaming Kit, sold separately |
| Battery | Removable, hot-swappable rear battery, up to 2 hours. Reserve battery for up to 20 minutes during a swap. 30 W adapter included |

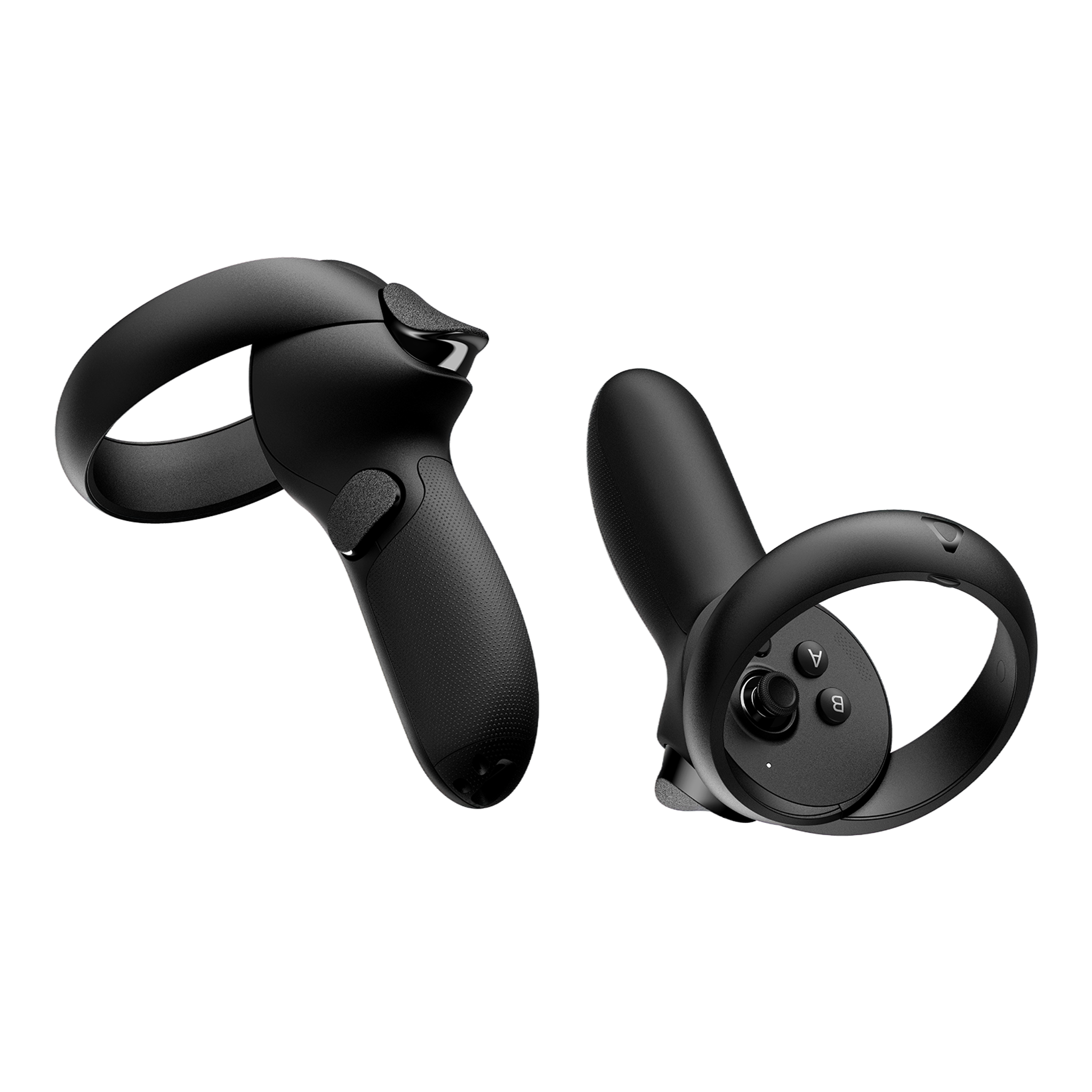

| Controllers | Two, rechargeable over USB-C, up to 15 hours |
| Weight | Not published by HTC |
| Part numbers | 99HAUM026-00 (Consumer), 99HAUM018-00 (Business) |
Compare models
| Business Edition | Consumer | |
|---|---|---|
| Warranty | Two years of VIVE Business Warranty and Services | Limited one-year consumer warranty |
| Commercial use | Covered | Needs VIVE Business Warranty and Services activated within 90 days of purchase |
| VIVE Business+ | Standard tier included | Only with added Business Warranty and Services |
| Hardware and box contents | Same | Same |
In the box
- Headset
- Gasket spacer
- Face cushion
- Rear cushion
- Battery
- Top strap
- Left and right controllers
- Two lanyards
- 30 W AC adapter
- Splitter cable for charging
- Lens cleaning cloth
- Quick-start guide QR code, safety guide, warranty card
- Size reference card for eyeglasses
Management
- VIVE Business+ for remote monitoring and setting updates. The Standard tier comes with VIVE Business Warranty and Services.
- Third party device management named by HTC: Microsoft Intune, VMware, AirWatch and ArborXR.
Production
- HTC states that all VIVE headsets are manufactured in a TAA-designated region and meet the requirements of Section 889 of the NDAA.
Works with
Deployment by Channel XR
Full systems
Headsets, base stations, trackers, and accessories on one order.
Setup
Setup and device management enrollment before shipping.
Fleet spares
Batteries, cushions, and power for VIVE Focus 3 and VIVE Focus Vision fleets.
Purchasing
Purchase orders accepted. Net 30 terms for approved accounts.
Questions and answers
What is the difference between the Business Edition and the consumer edition?
The hardware and box contents are the same. The Business Edition includes two years of VIVE Business Warranty and Services, which covers commercial use and includes the VIVE Business+ Standard tier. The consumer edition has a one-year consumer warranty.
Does it need base stations?
No. Tracking is inside-out, using four cameras on the headset.
Can it run PC VR?
Yes, through VIVE Business Streaming by cable or Wi-Fi 6E. DisplayPort mode needs the VIVE Wired Streaming Kit, sold separately.
How long does the battery last?
Up to 2 hours. The rear battery is hot-swappable, and a built-in reserve battery runs the headset for up to 20 minutes during a swap.
How much does it weigh?
HTC does not publish a weight for this headset.
