MANUS data gloves, configured and quoted by Channel XR
Metagloves Pro and Metagloves Pro Haptic with MANUS Core licensing, tracking adapters, and charging, sized for your operators and set up for robotics, motion capture, or XR.
Pricing and availability
Approved business accounts see live pricing. Lead time is confirmed on every quote.

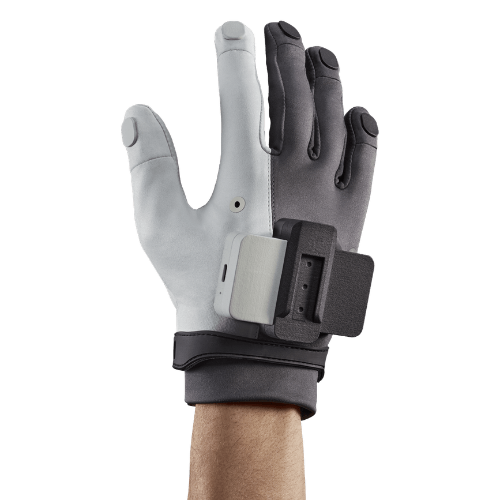

Electromagnetic field tracking with no optical occlusion, for robot teleoperation, training data, motion capture, and research.
- Tracking
- EMF, 25 degrees of freedom per hand
- Sizes
- XS, S, M, L
- Power
- Swappable batteries; Charging Station for continuous shift use
- Sharing
- Detachable Top Modules move between each operator's Sensor Gloves

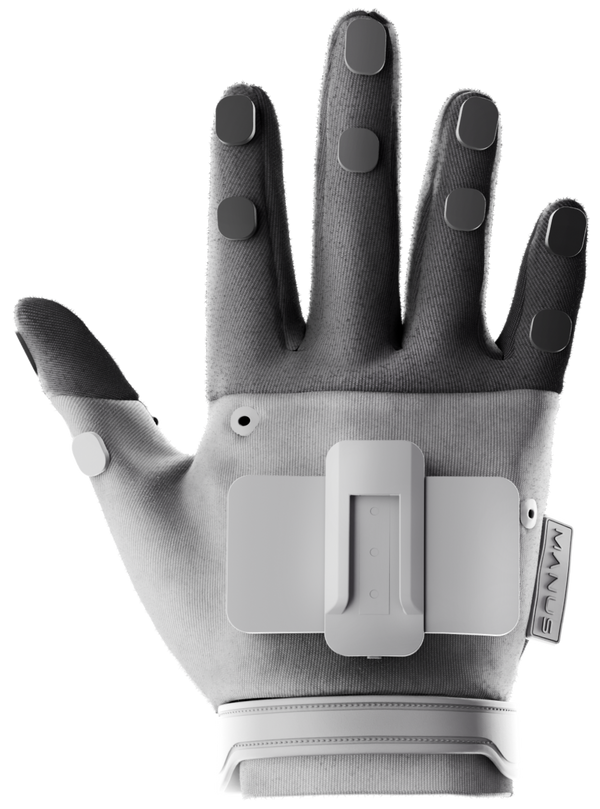

The same EMF tracking with integrated, real-time vibrotactile feedback, for teleoperation and XR interaction where the operator needs to feel contact.
- Tracking
- EMF, 25 degrees of freedom per hand
- Feedback
- Integrated vibrotactile haptics
- Sizes
- M, L
- Sharing
- Detachable Top Modules and swappable batteries
Each operator wears their own Sensor Gloves in their size; one set of Top Modules serves them all. Channel XR confirms sizes before the order ships.
Side by side
| Metagloves Pro | Metagloves Pro Haptic | |
|---|---|---|
| Finger tracking | 5 EMF fingertip sensors, 6 DOF each | 5 EMF fingertip sensors, 6 DOF each |
| Hand model | Full anatomical hand, 25 DOF | Full anatomical hand, 25 DOF |
| Sampling rate | 120 Hz | 120 Hz |
| Motion to data latency | 30 ms wired, 50 ms wireless | 30 ms wired, 50 ms wireless |
| Haptic feedback | None | 5 LRA vibration motors, 256 intensity levels per finger |
| Feedback latency | None | 4 ms wired, 16 ms wireless |
| Wireless | Bluetooth 5.0 dongle, up to 15 m depending on environment | Bluetooth 5.0 dongle, up to 15 m depending on environment |
| Battery | Swappable, up to 3 hours of use, about 2 hours to charge | Swappable, up to 3 hours of use, about 2 hours to charge |
| Weight per glove | 167 g, medium with battery | 178 g, medium with battery |
| Calibration | 4 steps, about 50 seconds | 4 steps, about 50 seconds |
| Sizes | XS, S, M, L | M, L |
| MANUS Core | 3.0 and newer | 3.1 and newer |
MANUS Core licensing
Channel XR quotes MANUS Core with each glove system. Choose the edition by where the hand data goes, then choose subscription or perpetual.
MANUS Core Robotics
For hand data that drives robots or your own code.
- Robot stacks: NVIDIA Isaac Teleop, ROS2
- Code: C++ SDK, Python SDK, Linux support
- Raw sensor data
MANUS Core Motion Capture
For hands combined with a body capture system or an XR or visualization tool.
- Body capture: Cortex, FZMotion, NOKOV, Noitom, Noraxon, OptiTrack, Qualisys, Vicon, Xsens
- XR and visualization: Autodesk VRED, IC.IDO, Siemens, WorldViz
- Audio: Ableton Live
- Raw sensor data
| Annual subscription | Perpetual license | |
|---|---|---|
| Payment | Yearly | Once |
| Updates and technical support | For the whole subscription | First year, then the annual service plan |
| If payments stop | The software stops working | The last version you received keeps working |
| Included in both editions |
|---|
| Recording, saving, and playback (.mrec) |
| Export to .fbx and .csv |
| Unity and Unreal Engine plugins |
| OpenXR |
| Raw sensor data stream |
Complete the system
Adapters mount third party trackers to the gloves. Choose the adapters for your tracking system.
Start from a proven setup
Four builds Channel XR quotes often. Pick one to load it into the configurator, then adjust counts and sizes.
Teleoperation station
- Metagloves Pro Haptic, so the operator feels contact
- MANUS Core Robotics
- Vive Tracker 3.0 on each wrist
- Charging Station for shift work
Robot learning data capture
- Metagloves Pro
- MANUS Core Robotics with raw sensor data
- Meta Quest 3 for hand position
- Sensor Gloves so operators rotate on one pair
Full body performance capture
- Metagloves Pro on Xsens Awinda or Link
- MANUS Core Motion Capture
- Adapters for Xsens
- Bodypack Lite per performer
Optical studio
- Metagloves Pro
- MANUS Core Motion Capture
- Adapters for Optical tracking
- Charging Station
Configure your system
Answer a few questions and Channel XR returns a quote with every part, sized and matched to your tracking and software.
Local support and integration
Sized before it ships
Operator sizes confirmed and Sensor Gloves matched before the order leaves.
One order
Gloves, MANUS Core, adapters, trackers, and headsets on a single quote.
Integration
Channel XR sets up stations with VIVE Trackers, Meta Quest 3, optical, or Xsens tracking.
Purchasing
Net 30 terms and purchase orders, from Cleveland, Ohio.
Engines and robotics
C++ and Python SDK, NVIDIA Isaac Teleop, OpenXR, ROS2, Unity, and Unreal Engine.
Motion capture and simulation
IC.IDO, Motion Analysis Cortex, MotionBuilder, NOKOV, OptiTrack Motive, Qualisys QTM, Siemens Teamcenter, Vicon, VRED, and Xsens MVN.
Questions we hear
Which MANUS Core edition do we need?
MANUS Core Robotics when the hand data drives a robot or your own code: C++ and Python SDK, ROS2, NVIDIA Isaac Teleop, and Linux. MANUS Core Motion Capture when the hands join a body capture system such as OptiTrack, Vicon, Qualisys, or Xsens, or an XR or visualization tool. Both record, export FBX and CSV, stream to Unity, Unreal Engine, and OpenXR, and give access to raw sensor data.
Can several people share one glove pair?
Yes. The Top Modules hold the electronics and move from glove to glove. Each person wears their own Sensor Gloves in their size, so a shared station needs one set of Top Modules and one pair of Sensor Gloves per person.
How long do the batteries last?
Up to 3 hours of continuous use per battery, and about 2 hours to charge. Batteries swap without recalibrating, and a Charging Station keeps spares ready for longer sessions.
How far can an operator move from the computer?
The wireless dongle reaches up to 15 meters, depending on the environment. For larger spaces, the Bodypack Lite records and streams over Wi-Fi 6E from the performer.
Do the gloves place the hands in the room?
The gloves capture the fingers and hand. To place the hands in 3D space, a tracker mounts on each wrist with MANUS adapters: Vive Tracker 3.0, Meta Quest 3 controllers, optical markers, or Xsens.
Subscription or perpetual license?
An annual subscription includes updates and technical support for as long as it runs, and the software stops if it lapses. A perpetual license is one purchase with a year of updates and support; after that it keeps running on the version you have, and the annual service plan renews updates and support.
What lead time should we plan for?
Channel XR confirms lead time on every quote, by glove model, size, and quantity.
How do we buy?
Send the configurator above or contact Channel XR for a quote. Approved business accounts buy on Net 30 terms with a purchase order.
