Emotibit All In One Bundle

OpenBCISKU: openbci-emotibit-aio-bundle

Price:
Sale price $499.00

Description

The EmotiBit bundle gives you everything you need to stream 16+ data streams from the body, including PPG, EDA/GSR, 9-axis IMU, and body temperature.

Measure research-grade biometric signals out of the box!

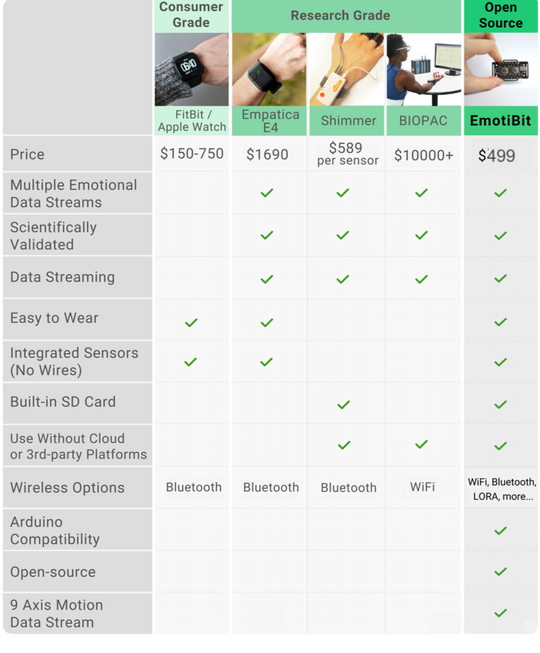

Scientifically validated, open-source alternative to research devices (e.g. Brain products, Empatica, Shimmer, BIOPAC):

$500 EmotiBit vs. a $20,000 gold standard Brain Products device - validation study
Published and ongoing research studies - link

What is EmotiBit?

EmotiBit is a wearable sensor for capturing high-quality emotional, physiological, and movement data. EmotiBit provides scientifically-validated sensing, making it an ideal tool for research. It's open-source (Arduino-compatible) and the data can be streamed wirelessly to any platform, enabling artists and makers to unlock new perspectives on biometric signals. EmotiBit is easy-to-use, so you can quickly integrate it into a class project. The data is 100% user-owned and can be directly recorded to the built-in SD card, empowering anyone to explore their own health and wellness without reservations about where that data might end up.

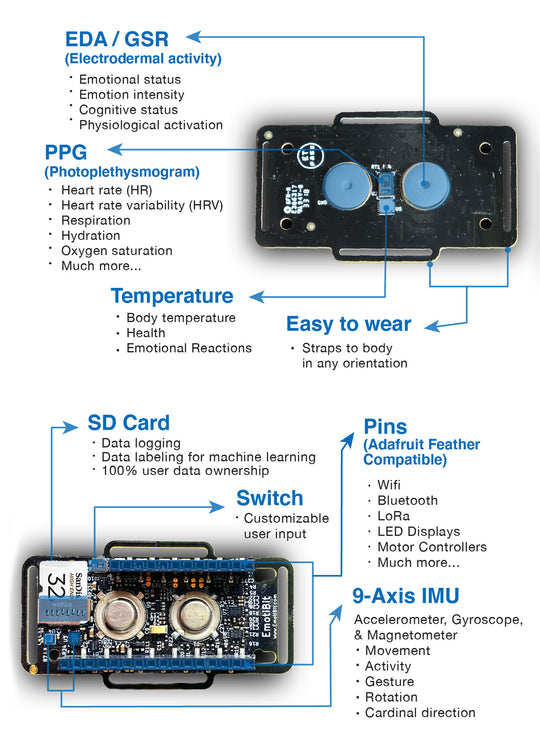

16+ biometric data streams:

  • PPG (3-wavelength) to derive heart rate, heart rate variability, respiration, oxygen saturation, hydration and (we believe) much more!
  • EDA / GSR (electrodermal activity / galvanic skin response) reflecting sympathetic nervous system responses that are driven by cognitive and emotional arousal.
  • 9-axis IMU (accel, gyro, mag) to derive movements, activity, gesture, rotation, and cardinal direction.
  • Body temperature to assess health as well as emotional reactions.

What can you do with EmotiBit?

Whether you're a researcher, developer, educator, artist, or just passionate about harnessing your own physiological data, the EmotiBit offers something for everyone!
Get inspired by the example projects in the product images.

Explore with EmotiBit:

  • Get immediate feedback about how cognitive and neural processes change your body’s physiology on a moment by moment basis.
  • Log your physical and psycho-emotional changes throughout the day.
  • Use the simple data labeling feature built into the cross-platform EmotiBit data visualizer to leverage data science and machine learning and discover your bio-patterns.
  • Track changes in body temperature, blood oxygen levels, and much more to build a long-term record of your bio-data.
  • Create an audio-visual experience using your own biometric data.
  • Data is accurately timestamped for synchronizing with other sensors/systems



all-in-one-emotibit

What comes in the bundle:

Item

Quantity

EmotiBit MD Board (includes a medical-grade thermopile temperature sensor)

1

EmotiBit Essentials Kit

1

  • Adafruit Huzzah32 Feather

1

  • 400mAh Lithium ion battery

1

  • High-speed microSD card

1

  • MicroSD card reader

1

  • Micro USB cable

1

  • Emoti-stretch straps of different lengths to wear EmotiBit nearly anywhere on the body, ranging from a child’s wrist to an adult head

3

EmotiBit Electrode Kit

1

  • EDA electrodes (Ag/AgCl)

10

  • Solder-cup snaps (to add your own EDA leads)

4

  • Emoti-genic covers (provides additional hygienic layer and sweat protection)

5

FREE, fully open-source, cross-platform data visualizer

1



Who makes EmotiBit?

Learn more about EmotiBit and the team behind it on the EmotiBit website.

Get started with instructions and documentation on GitHub!
