Description

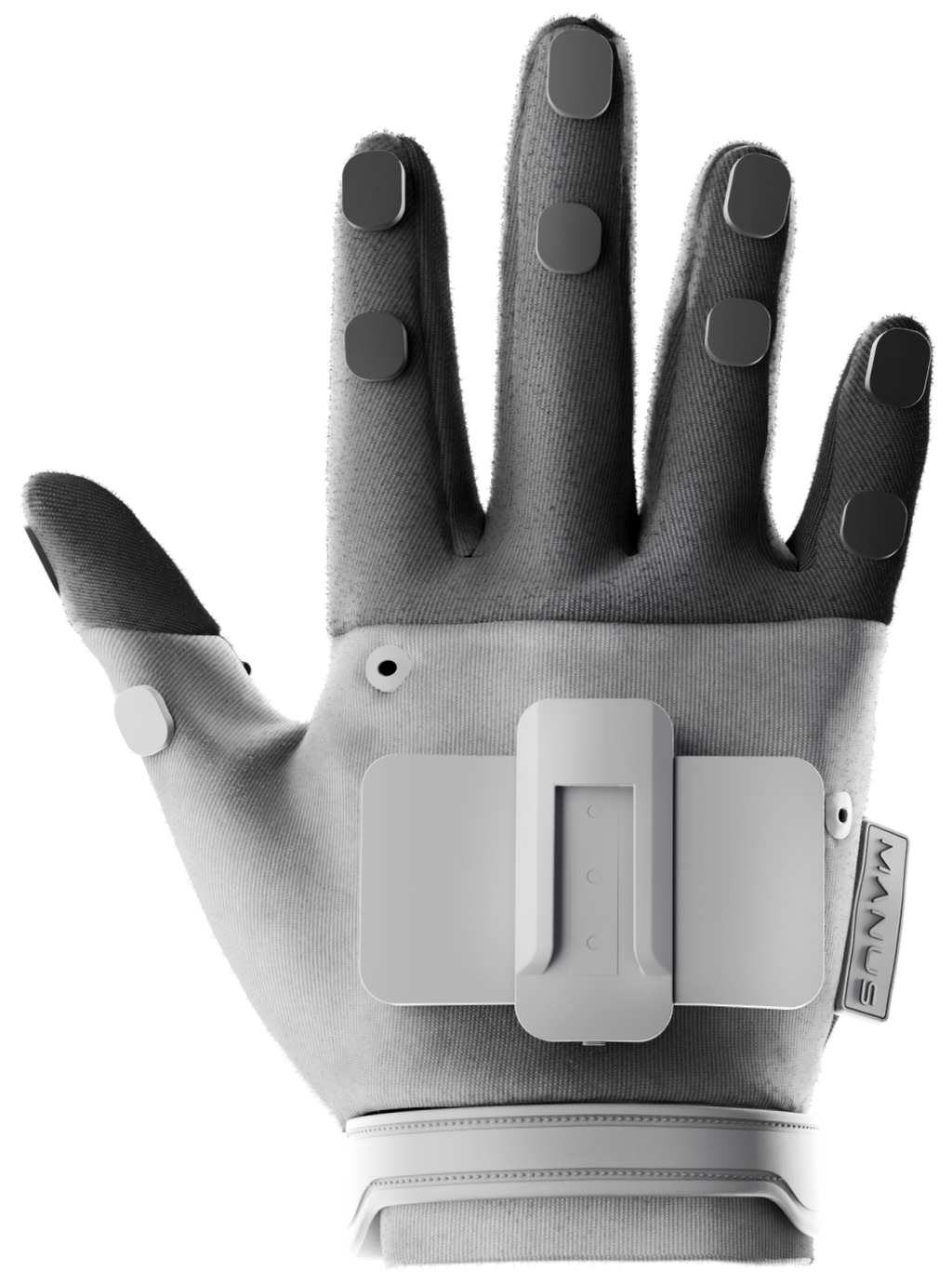

Precision Hand Tracking with Haptic Feedback
MANUS Metagloves Pro Haptic integrate electromagnetic field (EMF) tracking with haptic
feedback to deliver millimeter-level hand motion capture and real-time object interaction
signals. With 25 degrees of freedom, the system generates anatomically complete datasets of the human hand, capturing every joint and micro-movement for high-fidelity robotic control, embodied AI training, and VR/XR interaction.
CORE TECHNOLOGY
MANUS Metagloves Pro Haptic integrate electromagnetic field (EMF) tracking with haptic
feedback to deliver millimeter-level hand motion capture and real-time object interaction
signals. With 25 degrees of freedom, the system generates anatomically complete datasets of the human hand, capturing every joint and micro-movement for high-fidelity robotic control, embodied AI training, and VR/XR interaction. EMF tracking provides millimeter-level accuracy with no occlusion, no drift, and persistent calibration. Integrated Linear Resonant Actuators provide real-time vibrotactile feedback during object interaction, enhancing spatial awareness and accelerating learning in teleoperation and
virtual environments. Calibration completes in seconds, with profiles that persist across users, battery changes, and workstations.
MODULAR DESIGN
The detachable Haptic Top Module contains all electronics and connectivity, enabling costefficient multi-user deployment. Each operator requires only their own sized Haptic Sensor Glove. Swappable batteries and optional USB-C power support continuous 24/7 operation. The system integrates directly into existing pipelines through real-time streaming, industry-standard file export, or full SDK customization.
APPLICATIONS
Designed for teleoperation systems requiring tactile feedback, embodied AI training workflows demanding rich interaction datasets, and XR/VR environments where haptic response improves task performance and immersion. Suitable for robotics research, motion science, and AI development requiring anatomically accurate human hand data.
TECH SPECS
Fingertip Sensors
Technology: 5 EMF sensors with 6 DOF tracking
Data: 3 axis positional and 3 axis rotational
Sampling Rate: 120Hz
Motion-to-data Latency (Wired): 30ms
Motion-to-data Latency (Wireless): 50ms
Casing Material: PA-12
Haptic Modules
Technology: 5 LRA vibration motors
Intensity Control: 256 dynamic levels (per finger)
Control Rate: 120Hz
Feedback Type: 1-dimensional vibro-tactile feedback
Feedback latency (wired): 4ms
Feedback latency (wireless): 16ms
Hand Module
Sensor Connection: Interchangeable sensor connection
Status Indication: Battery LED, Status LED
Battery LED: Charging, Fully Charged
Status LED: Connected Wired, Connected Wireless, Starting Up, Connecting, Pairing, Alert, Low Battery, Firmware Update
Casing Material: PC/ABS
Connectivity
Wired
Communication: USB 2.0 Type-C
Wireless
Communication: MANUS Wireless Dongle (USB 2.0 Type-A)
Dongle Communication Protocol: Bluetooth 5.0
Dongle Range: Up to 15 meters (49 feet) depending on environment
Long Range Accessories: MANUS Bodypack Lite
Power
Battery Type: Interchangeable
Battery Model: Metagloves Pro Battery
Battery Locking Mechanism: Snap Fit
Battery Life: Up to 3 hours of continuous use
Charging Time: ~2 hours
Charging Options: Charge installed battery via USB Type-C (USB 2.0 with 5V/0.5A)
Charging Accessories: MANUS Charging Station
Weight
Glove with electronics for a medium hand (incl. battery):
178 grams (6.28 ounces)
Dimensions
Hand Module
Height: 60.7mm (2.39 inches)
Width: 78.2mm (3.08 inches)
Depth: 34.3mm (1.35 inches)
Fingertip Sensor
Height: 20.3mm (0.80 inch)
Width: 14.6mm (0.57 inch)
Depth: 9.6mm (0.38 inch)
Haptic Actuator
Height: 12.5mm (0.49 inch)
Width: 12.5mm (0.49 inch)
Depth: 8.1mm (0.32 inch)
Wireless Dongle
Height: 27.8mm (1.09 inches)
Width: 70.3mm (2.77 inches)
Depth: 8.5mm (0.33 inch)
Cable Length: 43cm (16.93 inches)
Gloves
Glove type: Full finger glove
Fingertip sensor placement: Integrated in glove textile
Fingertip sensor attachment: Removable from glove textile
Finger haptic actuator placement: Integrated in glove textile
Finger haptic actuator attachment: Removable from glove textile
Finger haptic actuator cables: Fully integrated, entirely enclosed
Fingertip sensor cables: Fully integrated, entirely enclosed
Hand module attachment: Attached with integrated latch
Hand module attachment steps: 1
Glove size options: M
Glove textile material: 72% polyester, 28% spandex
Glove textile washability: Yes, with electronics removed
MANUS Core
Compatibility: Works with MANUS Core 3.1 and newer
Hand calibration: Quick and easy 4 step process
Hand calibration time: 50 seconds
Hand solver: MANUS Hand Solver 3
Hand solver priority: Accurate joint angles for improved object interaction, hand grip poses and gestures
Hand solver accuracy: Improved skeleton bone length calculation, joint placement, joint angle calculation, and fingertip positional placement accuracy. Added fingertip rotational tracking for measuring hyperextension of the index, middle, ring and pinky fingers. Added user adjustable hand skeleton dimensions.
Hand articulation: Full anatomical human hand, 25 DOF
Wrist orientation: 3 axis rotational
Skeletal data: user hand skeleton, retargeted skeleton
Thumb fingertip sensor data: Yes, 3 axis positional and 3 axis rotational
Index fingertip sensor data: Yes, 3 axis positional and 3 axis rotational
Middle fingertip sensor data: Yes, 3 axis positional and 3 axis rotational
Ring fingertip sensor data: Yes, 3 axis positional and 3 axis rotational
Pinky fingertip sensor data: Yes, 3 axis positional and 3 axis rotational
Hand module sensor data: Yes, 3 axis rotational
User hand skeleton
Thumb
Carpometacarpal (CMC) joint: abduction/adduction, flexion/hyperextension
Metacarpophalangeal (MCP) joint: flexion/hyperextension
Interphalangeal (IP) joint: flexion/hyperextension
Index Finger
Carpometacarpal (CMC) joint: Stationary fixation
Metacarpophalangeal (MCP) joint: Abduction/adduction, flexion/hyperextension
Proximal interphalangeal (PIP) joint: flexion/extension
Distal interphalangeal (DIP) joint: flexion/hyperextension
Middle Finger
Carpometacarpal (CMC) joint: Stationary fixation
Metacarpophalangeal (MCP) joint: Abduction/adduction, flexion/hyperextension
Proximal interphalangeal (PIP) joint: flexion/extension
Distal interphalangeal (DIP) joint: flexion/hyperextension
Ring Finger
Carpometacarpal (CMC) joint: flexion/extension
Metacarpophalangeal (MCP) joint: Abduction/adduction, flexion/hyperextension
Proximal interphalangeal (PIP) joint: flexion/extension
Distal interphalangeal (DIP) joint: flexion/hyperextension
Pinky Finger
Carpometacarpal (CMC) joint: flexion/extension
Metacarpophalangeal (MCP) joint: Abduction/adduction, flexion/hyperextension
Proximal interphalangeal (PIP) joint: flexion/extension
Distal interphalangeal (DIP) joint: flexion/hyperextension
Positional Tracking
External tracking mount: Integrated MANUS Universal Mounting System for attaching trackers
Optical marker attachment: Comes with 2 attachment openings in glove textile for installing solid optical markers
Environmental requirements
Operating ambient temperature: 0° to 40° C (32° to 104° F)
Operating relative humidity: 10% to 80% (without condensation)
WHATS IN THE BOX
1x Pair of Metaglove Pro Haptic Sensor Gloves
1x Pair of Metaglove Pro Haptic Top Modules
1x Wireless Dongle
4x Metaglove Pro Haptic Battery
2x USB-C Cable
1x Quick Start Guide
1x Travel Case
